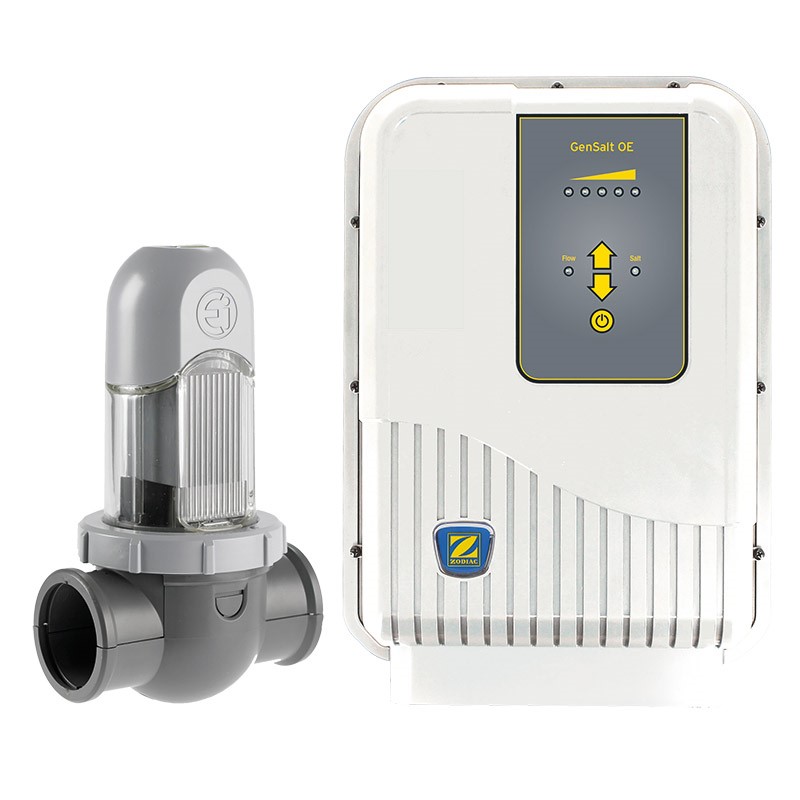

Zodiac GenSalt OE

Sorry - this product is no longer available

The Zodiac GenSalt OE is a long-lasting Salt Chlorinator thanks to its high quality titanium electrode.

Suitable for all types of installations for pools up to 110 cubic metres.

Sizing assumes pump on 8 hours per day.

£980.00

Model *

OE 10 up to 40m³ £980.00
OE 17 up to 70m³ £1,141.00
OE 25 up to 110m³ £1,262.00

Optional Extra

Earth Anode** +£55.00
Sacrifical Anode*** +£280.00

If Ordering an Earth Anode Please Confirm 1.5" or 2" for Saddle Clamp

Quantity*:

Free UK Delivery Over £60
UK Mainland Only (Excludes Highlands)
Excludes Hot Tubs & Swimspas except Inflatables

All Prices include VAT

Zodiac GenSalt OE salt chlorinators are easy to install and easy to use, offering complete water treatment automatically. Featuring the IPX5 waterproof control unit, the GenSalt OE can be installed in all types of plant rooms in as little as just 10 minutes courtesy of the patented Quick Fix System.

Features:

A high quality Titanium electrode making the GenSalt OE one of the longest-lasting chlorinators in its category.
Suitable for fast installation even in confined spaces or humid environments.
Self-cleaning electrodes via reverse polarity.
'Shutter Mode' with the automatic reduction of chlorine production when the pool cover shutters are closed (adjustable to o% or 20%).
Automatic Safety Stop if there is no flow in the cell.
IPX5 Waterproof Control Unit.
Cell Installation Kit for 50mm and 63mm hoses.
Unconditional Guarantee (on the control box and the cell).

** The earth anode is used to remove errant electrical current from the pool system to ensure that the zodiac electronic calibration works more accurately and is highly recommended in all installations.

***The Sacrificial zinc anode protects heaters, pool lights and rails due to galvanic corrosion and is highly recommended in ALL salt chlorinated pools.

TECHNICAL INFORMATION:

MODELS	GenSalt OE 10	GenSalt OE 17	GenSalt OE 25
Volume Of Water Treated (Temperate Climate, Filtration 8hr/Day)	40m³	70m³	110m³
Nominal Chlorine Production	10 g/h	17 g/h	25 g/h
Power Rating	60W	100W	140W
User Interface	LEDS	LEDS	LEDS
Operating Mode	Normal. Shutter Mode 0-20%	Normal. Shutter Mode 0-20%	Normal. Shutter Mode 0-20%
Clock/Timer	Linked to filtration	Linked to filtration	Linked to filtration
Reverse Polarity	Yes: 5hr	Yes: 5hr	Yes: 5hr
Recommended Minimum Salt Level	4 g/L - 3.0 g/L minimum	4 g/L - 3.0 g/L minimum	4 g/L - 3.0 g/L minimum
Safety	'No flow' indicator light	'No flow' indicator light	'No flow' indicator light
Cell Position	Horizontal or Vertical	Horizontal or Vertical	Horizontal or Vertical
Compatible Pipework	DN50, DN63	DN50, DN63	DN50, DN63
Protection Rating	IPX5	IPX5	IPX5
50 Hz Power Supply	220-240 VAC	220-240 VAC	220-240 VAC
	(mains cable with moulded plug)	(mains cable with moulded plug)	(mains cable with moulded plug)
