Onsite Lining

A tough hard wearing 1.5mm PVC material that allows installation into absolutely any size or shape of pool.

The material is brought to site and is cut and tailored to match the individual contours of your pool. Panel by panel the lining is made up and the over lapped edges are fused together.

Suitable for new pools and refurbishments, domestic or commercial, guaranteed for 15 years up to 90°F/32°C.

The Ceramics and Touch special ranges are 2mm thick, as opposed to 1.5mm for the standard patterns.

Unsure which liner to choose? CLICK HERE to view our exclusive LINER POOL DESIGNER!

Samples Available Upon Request.

Free no obligation site visits available to discuss lining options.

Price on application.

For a fully specified quotation and advice contact 02920 705059, or alternatively click the link below to enquire online and request a call back.

Enquire

All Swim are proud of our association with Certikin and have teamed with them once again to offer their superb infinite on-site lining system which features a high quality advanced material range.

All materials are certified for use in domestic and commercial applications, being KSW and CE certified – they meet all current European requirements for swimming pool installation – and in particular, all anti-slip membranes, plain colour or printed, are manufactured to DIN EN 51097 Cat C standards. A wide choice of colours and patterns are available.

15 year pro-rata guarantee at pool temps of up to 90℉ (32℃)
Fully certified materials – suitable for any installation
High quality printing with a multiple lacquered protective surface – offering the highest stain, discolouration and abrasion resistance
UV Stabilised – acceleration chamber tested
Ideal for both new and refurbished pools (including concrete, cement render, steel, aluminium, timber and fibreglass) – note: fittings must be liner fittings
1.5mm or 1.6mm PVC with polyester internal mesh, 2mm for touch and ceramics ranges

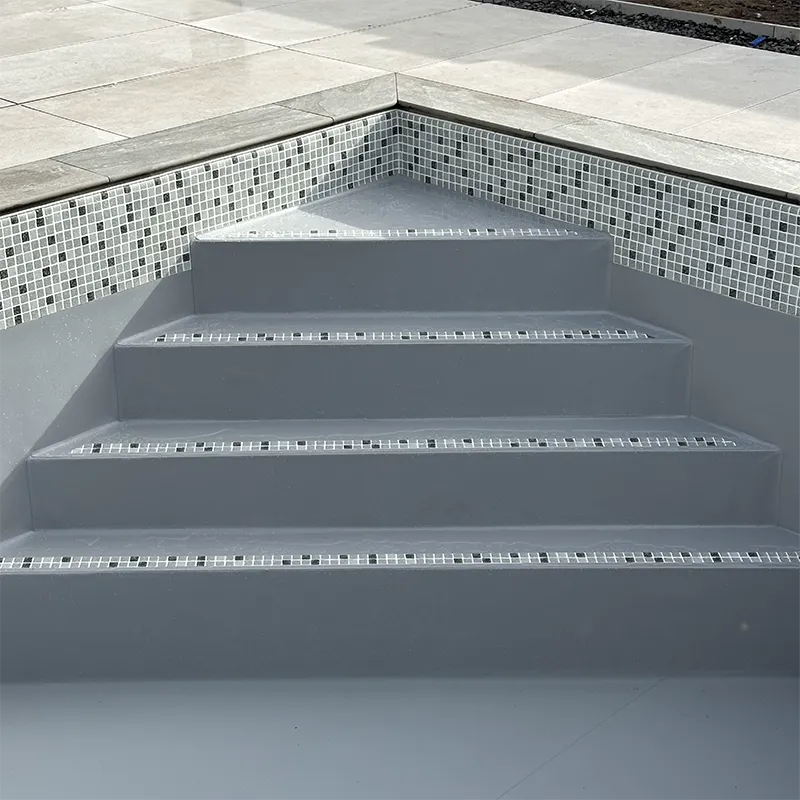

Anti-slip PVC for steps and walk in slopes
microbial equipped
Tear resistant
Installed with 50mm overlap seams – sealed with colour co-ordinated or translucent liquid PVC
Anchor points made with stainless steel expanding drive rivets
Can be hung from standard liner-lock or from specifically installed metal profile
Felt underlay available and recommended
Easily repairable if damaged
Suitable for domestic and commercial applications

Ceramics Onsite Lining

Ceramics range of onsite lining vinyl is a revolution in liner design with a new textured feel, giving your pool the luxurious impression of a more expensive tiled finish. Made with a thicker material than more traditional membranes in order to achieve the 3D tile effect.

Unique designs to give the look and feel of ceramic mosaic tiles. Available in 4 colour options - Atenea, Etna, Selene, Sofia
Quick and easy installation compared to glass mosaic tiling with all the usual benefits of standard on site lining vinyl
No fallen tiles or crumbling grout
